I'm putting links and my favorite Industrial Hempcrete Home Designs with additional information and links to my favorite Industrial Hemp information.

Hemp Home Complete Birds Eye View 2

Collection of Hemp Home Design CAD Drawing photos showcasing the sustainable lifestyle that this net zero energy efficient home, gardens, pergola, solar panels, solar water heating, pool, garage, safe room, basement, fireplace, 4 bedroom, 2 bath...

hemp-home-stucco-birds-eye

Hemp Home Complete Birds Eye View 3

Hemp Home Stucco Finish 1

Hemp Home Neighbors View

Hemp Home Side Yard Stucco

Hemp Home Pergola Arbor Garden Feature

Hemp Home Rear Street View

Hemp Home Rooftop Back Yard View

Industrial Hemp Home CAD designs by Scotty-Energy Efficient Post Frame and Hempcrete creating a Net Zero- Energy Efficient Sustainable 4 Bedroom 2 Bath, Gardens, Pool, Basement, Safe Room, Green Roof, Sky Lights, Dual Pane Windows, Fireplace, Hardwood Floors, Radiant Heating, Indoor Garden, Hedge, Landscaping, Water Features

http://www.youtube.com/watch?v=WSwSOJ02ucQ

Read and See more CAD Photos and Design Illustrations for this Industrial Hemp Home "Sustainable Construction" Design at Scottys Website St Louis Renewable Energy Hemp Home Design Collection.

Background on Industrial Hemp Building:

Builders have been building Homes and Commercial Buildings using this design in Europe for many years now. With the legalization of Industrial Hemp in the USA. Now Americans can adopt this Sustainable Building practice into our designs to create homes that can grow and be built in 2 years.

In this example of Hemp Building I've eliminated much of the excess lumber that is not needed in the build because of the Post Frame Structure. When the Natural Lime and Hemp Fibers are mixed together it creates a concrete like material that is also high in insulation value- you get the best of both worlds:

• A strong and durable Building that is also energy efficient that can withstand the abuse from the elements.

• This Natural product that can also be grown most anywhere in the USA.



Thank you for checking out the CAD designs on the use of Industrial Hemp for creating an Energy Efficient Home.

If I can assist you in your quest to design or build using this type of construction technique utilizing hemp or other natural green building products drop me a line and let me know. Scotty

Here is a sneak peek of the next post in the Designing Hemp Home Series

Hemp Home Design-Post Frame Structure-Wind and Earthquake Resistant

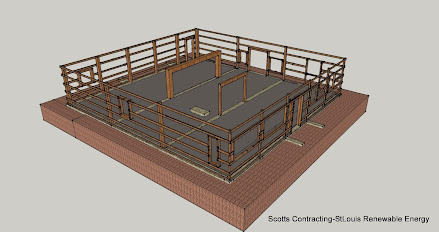

Post Frame Wood Structure Design-Industrial Hemp Wall Construction

Its all about Energy Efficiency and Conserving Natural Resources when using a Post Frame Building option with the added benefit: Post Frame Buildings are also Wind and Earthquake Resistant.

•  Lateral Loading caused by Severe Storms and Earthquakes
  • The design of buildings must account for wind loads, and these are affected by wind shear. For engineering purposes, a power law wind speed profile may be defined as follows:




    where:

     = speed of the wind at height

     = gradient wind at gradient height

     = exponential coefficient

Post Frame provides lateral load resistance, creating a unique building diaphragm that makes the light wood frame comparable in strength to light steel and concrete structures.

Summing all the above  information up:  Lateral Loading on a Building is the pressure caused by Wind on the Sides and Roof of a Building.  Which is especially important to me since the buildings location will be in the Midwest which is also Tornado Alley and I do not want to be forced to rebuild after a Severe Storm.

Rear Stair Way for Rooftop Access is also the addition of a Modified Flying Buttress that resists the lateral forces pushing a wall outwards (which may arise from stone vaulted ceilings or from wind-loading on roofs) by redirecting the Lateral Forces to the ground.

What the untrained eye might see as a Rear Stair Way for Rooftop Access while this is actually the addition of a Modified Buttress that resists the lateral forces pushing a wall outwards (which may arise from stone vaulted ceilings or from wind or snow-loading on roofs) by redirecting the Lateral Forces to the ground.

• A buttress is an architectural structure built against or projecting from a wall which serves to support or reinforce the wall. Buttresses are fairly common on more ancient buildings, as a means of providing support to act against the lateral (sideways) forces arising out of the roof structures that lack adequate bracing.

Read More on Lateral Loading at: Engineering Diaphragms (see ASAE EP 484.1 and APA Design/Construction Guide: Diaphragms)

Hemp Home Backyard Birds Eye View

My goal is simple: Net Zero and Affordable

In my quest to promote affordable sustainable buildings has lead me to discover a new building product that provides high R-value for energy efficiency and has the strength of concrete.  Hempcrete the new miracle building material!  Since this will be my retirement home, I realize that to make my limited budget go as far as possible I will need to be:

Net Zero in Energy Consumption and Energy Production and at the same time being

affordable to build on a limited budget.

Most everyone is aware that Living Trees are needed in removing the Carbon Dioxide from the Air and if  you have been to the local lumber yard lately the prices of lumber needed to build a traditional stick built home can be astronomical for the average budget and until insulation is added to the structure they are not energy efficient.

This Hemp Home design I'm working with eliminates a great percentage of Lumber needed in the building process and provides the insulation that will make heating and cooling this home easy and will be affordable!  This is the best of both worlds.

 This Hemp Home Design is all about Sustainability and will not sacrifice the Comfort Levels that I require.

Hemp Home Design 1

Hemp Home with Catalan Style Roof- "No Lumber Needed for Roof Structure"

• The above photo is a Catalan or Boveda Vault Style Roof.  When I watched this You Tube Video of the Spanish Masons in action; I realized that this was the solution to building a roof and ceiling with little to no lumber and it will be energy efficient and save me money on utility costs!   The Exterior water proofing layer has not been added to the design at this stage so that the viewer can the Masonry Work that comprises the Catalan Vault Style Roof System.

Skylights in Boveda Style Ceiling- IMO The best looking ceiling on the market!



Hemp Home-Water Recycling-Water Collection System

The roof also will act as a Water Collection System that allows me to capture and store Rain Water for use in the Hemp Home.  When a filter is added it can also act to provide the clean water needed for cooking, cleaning, and drinking.

The CAD drawing below is option 1 for the layout and design of the Hemp Home.  My girl has already pointed out that I left out: Additional Bedrooms for Visitors and a Fireplace for heat- Luckily we're in the design stage and not in the build stage of the Hemp Home.  I'm sure this floor plan will change as we narrow down our needs and must haves.

Hemp Home Room List

• 2 Bedrooms- 1 Master Bedroom and 1 spare bedroom
• 1 1/2 Baths
• Mechanical Room-Water Collection Point, HVAC Air Handler, Solar Inverter, Storage, Radiant Floor Heating
• Green House
• Mud Room
• Dining Room / Living Room
• Kitchen with Eat In counter

NOTE: These are not my final design plans stay tuned for additions and alterations to this Hemp Home Design as well as Build Notes on how and why I've chosen to build my future home with Hempcrete.

The fast growing  Hemp Plant will enable me to Grow and Build a Hemp Home in 2 years!

My plans are to build this home in a rural setting where I can plant and grow a field of hemp to build this home. (If we decide to build in a City Setting I will purchase the Natural Hemp Fibers).  While the Hemp is growing in the first year I will build the Stone - Rock Foundation for the home.   After the Hemp field has grown, harvested, and prepped for building- I can then start building the walls of the home with a move in date in year 2!

If Hemp Building isn't a solution to replacing the lumber needed for

building an energy efficient home I don't know what is! Scotty

This type of Vaulted Roof Building is not new- Spanish Masons have been building these type of structures for years.  See Mexico Insights:

Facts, Figures, Folklore & Fiestas at: http://www.mexico-insights.com/judysblog/post/Brick-Lakesidee28099s-Cornerstone-Part-7-The-Roof.aspx

In the previous post I have been illustrating how I plan to build the Roof System for the Net Zero Hemp Home.  This post shows how I plan to both Insulate the Catalan Vault Style Roof System and make it water proof.

Solar Array and White Roof Water Proofing on Catalan Vault Type Roof Structure on Scottys Hemp Home

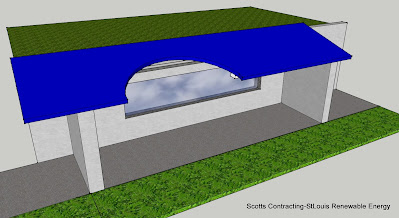

Hemp Home Second Roof Design with Natural Lighting Added

Hemp Home Catalan Vault Style Roof Waterproofing Detail

I found some additional details in English at this site http://www.mexico-insights.com/judysblog/post/Brick-Lakesidee28099s-Cornerstone-Part-7-The-Roof.aspx.  I am also now following the author on Twitter and FB!  I'll have more info on waterproofing the roof ASAP.  I will also be contacting the Hempcrete Pros for their suggestions in incorporating their product into this system.

See the Youtube Video of how these Spanish Masons Waterproof the Catalan Style Roofs:

Layer on vault compreión Gausa

http://www.youtube.com/watch?v=QCHbUC8anY8

Hempcrete Wall Details by Scotty-  Hemp Home Building Plans

Q-n-A with HEMP Building Expert: Mr. Greg Flavall Co-Founder and Technical Director at Hemp-Technologies on the Hemp Home design by Scotty

Hemp Home Wall Detail by Scotty

Additional Hemp Home Wall Details

Below: Hemp Wall Buttress Design adds support for the Catalan Roof Arches as well as support for the Solar Array!

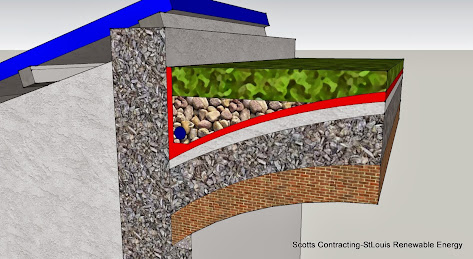

Hemp Home Catalan Green Roof Connection Detail by Scotty

Above: Hemp Wall and Catalan Vault Style Green Roof Connection Detail as suggested by Mr Greg Flavall- Hemp Technologies.

HEMP Building Expert: Mr. Greg Flavall Co-Founder / Technical Director Hemp-Technologies

Replied to My Question on Hemp Building:

I'm designing a Hempcrete home and have been looking into a Catalan Style Spanish Roof for a roof system that does not require lumber. Do you think a hempcrete product would replace the concrete the spanish masons use? I've started a series of articles on the planned build at: http://stlouisrenewableenergy.com/2014/02/05/hemp-home-catalan-vaulted-style-roof-waterproofing/

Mr. Greg Flavall Co-Founder / Technical Director Hemp-Technologies Answered:

""having looked at your website and design I'm intrigued. Although we have not done this style of roof I do not see what lime could not do the same as cement in this application- if it were sealed correctly.  Typically we are using Hemp/Lime for walls which is covered with 15-20mm of lime plaster for weather protection on a vertical plane. We install hemp/lime under the roof where it is protected as insulation and in the floor (above grade only) where it can breathe.""

Greg Asks: "Why would you not consider a green roof cover in this style, much like the Adnams Brewery project in UK completed in 2008? Seems to me a better use of area."

 Scotty added from Google Search for Adnams Brewery:

• Adnams Brewry Link Green Roof Information ,
• Adnams Brewry Link Hempcrete Traditional Case Studies-
• Tradical® Hemcrete® Case Studies
• Hemp Technologies-Hemp Building USA projects

regards,

Greg Flavall

Co-Founder / Technical Director

www.hemp-technologies.com (Facebook)

www.hemptechnologies.co.nz (Facebook)

71 Brougham Street, New Plymouth 4310, New Zealand, NZ.

+64-6-880-0254, USA. +1-828-333-4724,

C. +64-27-910-7855, Skype: galrfai8
