Industrial Hemp CAD Designs Natural Sustainable Net Zero Home




Industrial Hemp CAD designs of 4 Bedroom, 2 Bath, Net Zero Sustainable Home.

Industrial Hemp Home CAD designs by Scotty-Energy Efficient Post Frame and Hempcrete creating a Net Zero- Energy Efficient Sustainable 4 Bedroom 2 Bath, Gardens, Pool, Basement, Safe Room, Green Roof, SkyLights, Dual Pane Windows, Fireplace, Hardwood Floors, Radiant Heating, Indoor Garden, Hedge, Landscaping, Water Features...see the easy to read CAD Details


Hemp Home Frontal View- Design by Scotty Net Zero Energy Efficient Hempcrete Home


  • HEMP HOME COLLECTION BY SCOTTY February 9, 2014 Collection of Hemp Home Design CAD Drawing photos showcasing the sustainable lifestyle that this net zero energy efficient home, gardens, pergola, solar panels, solar water heating, pool, garage, safe room, basement, fireplace, 4 bedroom, 2 bath…
  • HEMP HOME POST FRAME LATERAL LOADINg Post Frame Wood Structure Design-Industrial Hemp Wall Construction Its all about Energy Efficiency and Conserving Natural Resources when using a Post Frame Building option with the added benefit: Post Frame Buildings […]

           CAD Detail-Hemp Home Rear Birds Eye View
  • Q AND A WITH HEMP BUILDING EXPERT GREG FLAVALL HEMP TECHNOLOGIES Hempcrete Wall Details by Scotty-  Hemp Home Building Plans Q-n-A with HEMP Building Expert: Mr. Greg Flavall Co-Founder and Technical Director at Hemp-Technologies on the Hemp Home design by Scotty Additional […]

Hemp Home Wall Detail
  • Hemp Home Catalan Vaulted Style Roof Waterproofing-In the previous post I have been illustrating how I plan to build the Roof System for the Net Zero Hemp Home.  This post shows how I plan to both Insulate the Catalan Vault Style Roof System and make it water proof.

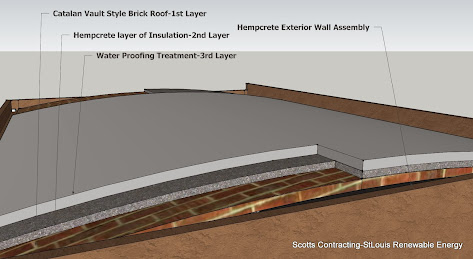

Hemp Home Catalan Vault Style Roof Waterproofing Detail
  • Designing My Hemp Home My goal is simple: Net Zero and Affordable In my quest to promote affordable sustainable buildings has lead me to discover a new building product that provides high R-value for energy efficiency and has the strength of concrete.  Hempcrete the new miracle building material!

  Hemp Home Design 1 by Scotty
  • ASK A BUILDER-HOW WOULD YOU BUILD YOUR RETIREMENT HOME? My retirement home will be a Hemp Home!  I feel a Hemp Home addresses the main issue facing mankind today (co2 emissions) without sacrificing comfort needed in both energy and lifestyle choices.

    To ensure that my retirement income will provide the needed security as I age in place my hemp home will enable me to use natural resources in the building of the energy efficient structure-controlling costs in the build and the future energy costs.
     Taking pointers from the first American Settlers:  I will build my home from the land and use as many natural resources as possible.
     Industrial Hemp Home CAD designs
1916 US Dept of Agriculture Sign- Marijuana House Saves Millions Build Your Home Today! Hemp Fiber Board and Hemp Concrete 300% Stronger than Wood Self Insulating Water Proof And More....
1916 US Dept of Agriculture Sign- Marijuana House Saves Millions
Build Your Home Today!
Hemp Fiber Board and Hemp Concrete
300% Stronger than Wood
Self Insulating
Water Proof
And More....





Thank you for stopping by St Louis Renewable Energy. Feel free to comment in the section below or contact Scotts Contracting- St Louis Home Improvement Projects and Energy Reducing Needs Get Your Green Building Tips and Resources at St Louis Renewable Energy Green Blog

11.15.2013

CAD Heavy Duty Solar Racking Designs by Scotty


DIY Build Your Own Solar Ballasted Racking System using these CAD Plans by Scotty-Scotts Contracting, StLouis Renewable Energy.  In a recent Solar Project I had a few issues of finding a Heavy Duty Ballasted Racking Design for Skyscraper High Wind Zones.

This is a simple heavy duty plan that you can build yourself as its made out of standard metal sizes and adaptable to your specs.

Install Central Ballast Per Engineering Wind Force Guidelines.  85mph Minimum Design StLouis MO.
Heavy Duty Ballasted Racking Design for Skyscraper High Wind Zones
ISO View of Racking with CMU-Designed by Scotty
ISO View of Racking with CMU

Underside View-CAD by  Scotty Scotts Contracting
Underside View of Basic Racking Design

Solar Racking Design CAD Materials Designed by Scotty
Racking Design CAD Materials Designed by Scotty

CAD Note: Install Central Ballast Points per Engineering Wind Design
Side View Note: More Ballast Points Suggested per Engineering Report
Scotty Note: Note: Fillet Welds Suggested at all Connection Points
Note: Fillet Welds Suggested at all Connection Points

Additional Plans are available or place your orders using the Contact Form on the right.Scotty

Thank you for stopping by St Louis Renewable Energy. Feel free to comment in the section below or contact Scotts Contracting- St Louis Home Improvement Projects and Energy Reducing Needs Get Your Green Building Tips and Resources at St Louis Renewable Energy Green Blog

12.24.2012

2nd Floor Room Addition Options

Four CAD Drawings for Proposed 2nd Floor Room Addition by Scotty-Scotts Contracting, St Louis Renewable Energy


The first CAD drawing incorporates a Photovoltaic Solar System on the Passive "Energy Efficient Designed" Sloped Roof as well as a Bank of Windows on the West Wall for Natural Daylight.


Design by Scotty-Scotts Contracting-Frank Lloyd Wright Inspired 2nd Floor Room Addition
Frank Lloyd Wright Inspired 2nd Floor Room Addition

All Brick Option Design by Scotty, Scotts Contracting
All Brick Option

Brick and Siding Design Build Photo by Scotts Contracting, St Louis Renewable Energy
Combo Siding and Brick

Designs by Scotts Contracting, St Louis Renewable Energy
Stucco and Brick Option



Thank you for stopping by St Louis Renewable Energy. Feel free to comment in the section below or contact Scotty for any Home Improvement Projects or Energy Reducing Needs and Scotty, Scotts Contracting will respond ASAP. Company Web Address: http://www.stlouisrenewableenergy.com

11.28.2012

First Floor Ceiling Joist Reinforcement-Benton Project

On the Benton Project we found that the Structural Lumber was in good shape for the most part on this stage of the building project.  During the Design Build Demo we removed a staircase that did not meet current building codes and because the area was not framed to current build techniques for proper structural support

Notes:

  1.  removed the stair case- and carefully supported the area during with adjustable 'House Jacks'

  2. We added additional Support Joists and  Joist Hangers for the ceiling and floor

  3.  Added 3/4 in plywood on the floor

  4. Built a Laundry Room in place of 1/2 of the Removed Stair Way. Note 2-  The Front Wall of the Laundry Room now supports the Area where the Ceiling Joists needed extra support see photo below.

  5. Because all the 2nd Floor Plumbing, 2nd Floor Laundry Room, was located directly above this Area we ran all the pipes, exhaust vents, etc in the Lowered Ceiling of the 1st Floor Laundry Room and Bathroom Stack Wall.




removed the stair case- and carefully supported the area during with adjustable 'House Jacks'
We added additional Support Joists and  Joist Hangers for the ceiling and floor

Support Joists and  Joist Hangers




  • Built a Laundry Room in place of 1/2 of the Removed Stair Way. Note 2-  The Front Wall of the Laundry Room now supports the Area where the Ceiling Joists needed extra support see photo below.
  • Because all the 2nd Floor Plumbing, 2nd Floor Laundry Room, was located directly above this Area we ran all the pipes, exhaust vents, etc in the Lowered Ceiling of the 1st Floor Laundry Room and Bathroom Stack Wall.



Thank you for stopping by St Louis Renewable Energy. Feel free to comment in the section below or contact Scotty for any Home Improvement Projects or Energy Reducing Needs and Scotty, Scotts Contracting will respond ASAP. Company Web Address: http://www.stlouisrenewableenergy.com

11.02.2011

CSP Design with Heat Recovery Unit-Designed by Scotts Contracting

UPDATE:  Concentrated Solar Power Design with Added Heat Recovery Unit-

  • CSP-CAD Diagram designed by Scotty, Scotts Contracting-St Louis Renewable Energy Nov 1, 2011


Updated Concentrated Solar Power Photovoltaic Design with Added
Automatic Heat Recovery Unit for Dual Energy Savings
This is an update on the CSP (Concentrated Solar Power) design with Heat Recovery Unit for added energy savings.

Design Features:

  • Parabolic Trough Focuses the Suns Rays onto the Receiver
  • Photovoltaic Receiver creates Electricity and
  • Energy via the Automatic Heat Recovery Unit
Notes
  • Many of the CSP designs on the Market today "create steam to generate electricity".  This design will create electricity efficiently via Photo-voltaic Cells in the receiver; thus eliminating the need for Steam Engines.  It also generates heat to be used in the Heat Recovery Unit (twice as much usable energy for today's home and business).
  • Heat Recovery Unit incorporates a automatic air handler set by thermostat for transferring climatically controlled air movement.
  • This design works exceptionally well during the winter time when the suns radiation is at it lowest radiation level-the loss of energy is minimized by the Heat Recovery Unit.
  • Concentrated Solar Power will soon be available for non-desert regions and easily adaptable for any region.
  • System allows for the'Receiver' to easily upgrade to new and developing Photovoltaic Cells for increased electrical output

Seeking Assistance to further Develop this CSP Design2.  Please use the Contact Form> for additional info and Scotty, Scotts Contracting will reply ASAP.

10.29.2011

Fire Proof-Air Tight-Electrical Junction Box Cover


Air Sealing a Ceiling Electrical Junction Box

CAD Design-Weatherize-Insulate-Fire Block-Electrical Junction Box
Air Sealing Ceiling Electrical Junction Box
CAD Diagram explains how to Build and Air Tight Electrical Junction Box located in most Attics

Sealing Air Leaks

Warm air leaking into your home during the summer and out of your home during the winter and can waste a lot of your energy dollars. One of the quickest dollar-saving tasks you can do is caulk, seal, and weatherstrip all seams, cracks, and openings to the outside.



You can save on your heating and cooling bill by reducing the air leaks in your home.

Fire Proof /Air Tight Electrical Junction Box Cover used in Attics

Hint: Use Fire Rated: 5/8″Fire Rated Drywall or Sheetrock with Fire Proof Caulking to

Create the Air Tight Seal

Tips for Sealing Air Leaks

re-posted from:http://www.energysavers.gov/tips/insulation_sealing.cfm
Pie chart shows how air escapes from a typical home: 31% floors, ceiling, walls; 15% ducts; 14% fireplace; 13% plumbing penetrations, 11% doors; 10% windows; 4% fans and vents; 2% electric outlets.How Does the Air Escape?
Air infiltrates into and out of your home through every hole and crack. About one-third of this air infiltrates through openings in your ceilings, walls, and floors.
  • First, test your home for air tightness. On a windy day, carefully hold a lit incense stick or a smoke pen next to your windows, doors, electrical boxes, plumbing fixtures, electrical outlets, ceiling fixtures, attic hatches, and other locations where there is a possible air path to the outside. If the smoke stream travels horizontally, you have located an air leak that may need caulking, sealing, or weatherstripping.
  • Caulk and weatherstrip doors and windows that leak air.
  • Caulk and seal air leaks where plumbing, ducting, or electrical wiring penetrates through walls, floors, ceilings, and soffits over cabinets.
  • Install foam gaskets behind outlet and switch plates on walls.
  • Look for dirty spots in your insulation, which often indicate holes where air leaks into and out of your house. You can seal the holes with low-expansion spray foam made for this purpose.
  • Look for dirty spots on your ceiling paint and carpet, which may indicate air leaks at interior wall/ceiling joints and wall/floor joists. These joints can be caulked.
  • Install storm windows over single-pane windows or replace them with more efficient windows, such as double-pane. See Windows on page 18 for more information.
  • When the fireplace is not in use, keep the flue damper tightly closed. A chimney is designed specifically for smoke to escape, so until you close it, warm air escapes—24 hours a day!
  • For new construction, reduce exterior wall leaks by installing house wrap, taping the joints of exterior sheathing, and comprehensively caulking and sealing the exterior walls.
  • Use foam sealant around larger gaps around windows, baseboards, and other places where warm air may be leaking out.
  • Kitchen exhaust fan covers can keep air from leaking in when the exhaust fan is not in use. The covers typically attach via magnets for ease of replacement.
  • Replacing existing door bottoms and thresholds with ones that have pliable sealing gaskets is a great way to eliminate conditioned air leaking out from underneath the doors.
  • Fireplace flues are made from metal, and over time repeated heating and cooling can cause the metal to warp or break, creating a channel for hot or cold air loss. Inflatable chimney balloons are designed to fit beneath your fireplace flue during periods of non-use. They are made from several layers of durable plastic and can be removed easily and reused hundreds of times. Should you forget to remove the balloon before making a fire, the balloon will automatically deflate within seconds of coming into contact with heat.
Cutaway house illustration showing areas of home where air leaks. Refer to caption for list.Sources of Air Leaks in Your Home
Areas that leak air into and out of your home cost you lots of money. Check the areas listed below.
  1. Dropped ceiling
  2. Recessed light
  3. Attic entrance
  4. Sill plates
  1. Water and furnace flues
  2. All ducts
  3. Door frames
  4. Chimney flashing
  1. Window frames
  2. Electrical outlets and switches
  3. Plumbing and utility access
Scotts Contracting is available to assist you in improving your Home or Business Energy Demands.  Please use this form below to Contact Scotty, Scotts Contracting to schedule a FREE Energy Analysis for your Property.

9.14.2011

Online Business Card for Scotts Contracting


Additional Business Information for Scott's Contracting


Description:
Scott's Contracting your Green Building Specialist for the St Louis Area. For us being Green and Eco Friendly is not just a FAD. It has become a lifestyle that we have incorporated into the way we choose to do business and live. Green and Sustainable Home Improvments for your Home or Business. Along with the Normal Repairs or Upgrades- We Provide:Products, Green Design Services, Installation, Construction, Remodel, Rehabbing, and Building Up-Grades
Categories:
Building Construction, Architecture, Carpentry & Woodworking, Demolition & Site Prep, Electrical, Flooring & Tiling, Insulation, Kitchen & Bathroom, Windows & Doors, Energy Efficiency
Hours of Operation:
Monday:8:00 AM - 5:00 PMTuesday:8:00 AM - 5:00 PMWednesday:8:00 AM - 5:00 PMThursday:8:00 AM - 5:00 PMFriday:8:00 AM - 5:00 PMSaturday:8:00 AM - 5:00 PMSunday:Closed

8.20.2011

Adding a Porch to an Existing Home

Misc CADD Details for Adding a Porch to an Existing Home.



Existing House Framing CADD Detail 1/306

Option 1 Porch Framing CADD Detail 1/307
Exterior Finish CADD Detail 1/308
