StLouis White TPO Roof Project CAD Detail

CAD Detail No: 9821 White TPO Flat Roof Replacement Detail using Structodeck.

Eco Friendly White TPO Roof Job Site Project Photos bottom of page

CAD Detail No: 9821 White TPO Flat Roof Replacement Detail using Structodeck

• I've found that making a simple and quick graphic image to use as a visual tool to explain a building system repair to a client is easier when I provide a "non technical" image of the proposed work to be done.
• Why GAF EverGuard® TPO
• Outperforms standard TPO in heat aging and UV tests—the best predictors of TPO performance
  - Independent TPO Study proves EverGuard® TPO 60 mil Membrane is the best standard TPO in accelerated aging. View the key findings and full study here.
  - After accelerated heat aging at 275°F (135°C) for 112 days, EverGuard® TPO showed no cracking—while every one of the competitors’ samples had failed!
  - UV testing—Greater than 2.5 times the industry standard (ASTM D6878 weather resistance test)

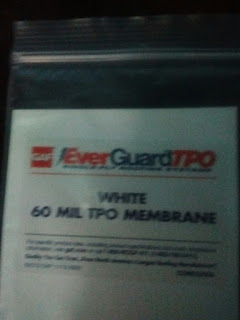

• Guarantees are available up to 25 years when using EverGuard® TPO 60 mil Membrane.*
• Easier to install due to:
  - Large welding window
  - Most complete line of accessories
  - 10' (3.05 m) wide sheets

DESCRIPTION STRUCTODEK HD is not only an integral roofing system component; it also makes roofing easier with physical properties that generate structural rigidity and dimensional stability. The wood fiberboard composition of STRUCTODEK HD possesses natural bonding qualities, resulting in superior adhesion capabilities. Adhesive tightly grasps the fibers of STRUCTODEK HD without causing excess absorption, providing a solid and secure roof system which bonds very well with many asphalt, coal tar, and cold-process adhesive products. The lightweight nature of STRUCTODEK HD is better than heavier alternatives and will keep the roof load below the specified maximum weight. Source

Below Porch photo prior jobsite building photo - barrel tile roof removal replaced with asphalt shingles.

Kevin at Travis Roofing Supply was a great help in outlining the proper materials and needed prep to ensure the TPO roofing will meet and exceed the expectations of the Investment Property Owner plus the 25 year product guarranty.

Below are the project photos for the TPO white roof Project

Travis Roofing Supply is located just north of the Vandeventer/44 in the old RSG Roofing Building

#FreeShare White #TPO CAD Roof Detail-St Louis Flat Roof Brick Wall
WhiteRoofs save money + reduce Heat-island effect. #StLouis pic.twitter.com/ICCQO0aAAF

— Scotty (@StLHandyMan) April 11, 2017

Thank You for stopping by the Green Blog. If additional information in needed or you have a question let me know by posting a question or comment. Together we can make a difference and create a future that will benefit everyone.
