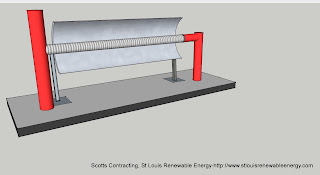

CSP-CAD Diagram designed by Scotty, Scotts Contracting-St Louis Renewable Energy Nov 1, 2011
This is an update on the CSP (Concentrated Solar Power) design with Heat Recovery Unit for added energy savings.
Parabolic Trough Focuses the Suns Rays onto the ReceiverPhotovoltaic Receiver creates Electricity and Energy via the Automatic Heat Recovery UnitNotes: Many of the CSP designs on the Market today "create steam to generate electricity". This design will create electricity efficiently via Photo-voltaic Cells in the receiver; thus eliminating the need for Steam Engines. It also generates heat to be used in the Heat Recovery Unit (twice as much usable energy for today's home and business).Heat Recovery Unit incorporates a automatic air handler set by thermostat for transferring climatically controlled air movement.This design works exceptionally well during the winter time when the sun…
