Roof and Attic Ventilation

Roof Ventilation Update

The construction industry's leading researcher explains why what we think is true often isn't, and how some of our best hunches, based on observation of field performance, have paid off with problem-free attic assemblies

by William B. Rose

I've gotten many calls over the years about attics and attic ventilation; almost invariably the caller is confused, having heard different things from different people. In this article, I'll discuss the performance of attic assemblies and try to shed light on why there are so many points of view about roof ventilation.

The temperature of a northern-climate roof we monitored throughout the 1990s is shown below (Figure 1). Here is a summary of the study: The roof gets cold at night and is hot during the day. It gets hotter on a sunny day than on a cloudy day. Attic assemblies with openings to the outdoors ("vented" attics) stay a bit cooler during the daytime than unvented assemblies. They also stay slightly warmer at night.

Figure 1. Sheathing temperatures are affected somewhat by roof ventilation, but many other factors play a bigger role.

Many factors influence the temperature on the roof. A prioritized list might include hour of day, outdoor air temperature, cloud cover, color of the roof, roof orientation, where the measurement is taken (sheathing or shingles, top or bottom), latitude, wind speed, rain or snow on the roof, heat conduction across attic insulation, roof framing type (truss or cathedral), and attic ventilation to the outdoors. As you can see, ventilation falls pretty far down the list.

To better understand how wind affects roof ventilation, Canadian researchers T.W. Forest and I.S. Walker measured the air exchange rate in attic assemblies using tracer gases. The graph below (Figure 2) gives us a feel for what they found. That is, air-change rates in the attic tended to increase with wind speed, but the amount of air change at a given wind speed was unpredictable. In fact, even with specific information about climate, construction type, and wind speed and direction, the resulting air-change rates may vary by a factor of 10 or more. Whether air flows out through a roof opening or in through that opening, and whether this airflow induces flow from indoors into the attic or helps dilute and remove moist air from the attic, can never be pinned down very well, except to say that wind is a more powerful factor than buoyancy (the "stack effect").

Figure 2. While higher wind speeds tend to increase attic ventilation, the relationship is a weak one: Ventilation rates at a given wind speed can vary by a factor of 10.

For the most part, roof assemblies behave like any wood structure — they are wetter when cold and drier when warm. Roof assemblies tend to be hot, thanks to the sun, so they tend to be dry. Of course, if the roof leaks, that becomes the biggest source of wetness. High moisture levels indoors or in basements or crawlspaces can also increase moisture levels in the roof. Roof members can become particularly wet or covered with frost near holes in the ceiling or leaks in attic ductwork, where humid air enters the attic. It was the formation of local frost "walnuts" like those shown on the next page (Figure 3) that led researchers in the late 1930s to recommend attic ventilation. (If only they had offered to seal up the ceiling instead!)

Figure 3. Moist interior air leaking through a hole in the ceiling can produce moldy sheathing or frost on a roof truss. This photo by the author shows results from the Attic Performance Project.

Many attic assemblies are built with vents to the outdoors on the presumption that outdoor air will enter the attic and dilute moisture coming from indoors or from the foundation. The further presumption is that indoor air is wet and outdoor air is dry. Both of these assumptions are often false. If there are openings in the ceiling, then air movement in the attic can induce airflow from below, or dilute air from below, or do nothing, in ways that are just plain unpredictable no matter how much research is done. Attic air movement can also induce flow into the living space below, which is a nasty problem when the air conditioning is running.

Suppose that the picture of attic ventilation provided by physics, described above, doesn't quite cut it. Too many qualifications; nothing pinned down. Then we can go to our own observations and experiences, subjective and incomplete as they may be. Here's my main finding: Attic assemblies built over the last 15 years or so are pretty good. They may be a crapshoot in building-physics terms, but the crapshoot is heavily biased toward good performance.

Let's look at attic assemblies by component:

Truss construction seems to do quite well. There are disasters that occur during construction. Truss uplift continues to be a problem requiring cosmetic fixes. The industry has, for the most part, discontinued the use of fire-retardant treatment of truss members, thereby avoiding what was a serious concern for several years. The truss heels in many cases still fail to provide the height necessary for good insulation. Attics have become a forest of truss webs, and thus are less usable for attic storage space. But the overall picture is good (at least by my observations).

Gypsum wallboard ceilings have shown improvement. The message seems to have gotten out that ceilings must be airtight — there is no justification, summer or winter, for allowing indoor air or foundation air to pass into attic cavities. The common culprits, such as framed soffits over kitchen cabinets, open oversized plumbing or mechanical chases, and leaky can lights, are going away in most construction where the word has gotten out. Weatherization of existing buildings has kept the focus on closing off any ceiling bypasses. In my experience, most truss-framed attics do fine without special vapor-barrier membranes in the ceiling, but in cold locations, cathedral ceilings may need vapor protection just as walls do.

Insulation. Regarding insulation, most areas of the country have healthy amounts in the attic — R-30 in general and R-38 in northern areas. Cellulose provides good insulation and helps block airflow. Fiberglass, in sufficient density and with good installation, also provides good thermal insulation. Foam insulation is being used more commonly, and has become the material of choice for residential air-sealing. Structural insulated panels (SIPs) work fine, as long as the airflow problem at joints is addressed. Foam insulation has been sprayed on the underside of board and wood-panel sheathing with great success. Insulated panels (often polyisocyanurate) make for good roof-deck assemblies, as we know from commercial low-slope construction, where the foam insulation is often sandwiched between the structural roof deck and the roofing membrane. (All foam needs fire protection, of course.) Open-cell foams such as Icynene may need more vapor protection than closed-cell foams, which have greater resistance to vapor flow.

Vapor barriers still cause squabbling, but most builders know that moisture flow from below comes mostly through holes in the ceiling. Cathedral ceilings require special care in insulation placement and vapor protection. But the new code provisions should encourage insulated sheathing materials or insulated "sandwich" assemblies that resist moisture transport and heat flow as a package. With these roof assemblies (I call them "insulated vapor retarders" or "fat vapor retarders"), the inside surface stays close to indoor conditions, the outside surface stays close to outdoor conditions, and nothing bad happens in the middle. Our laboratory has had such an assembly in place for more than 15 years, with one inch of foil-faced polyisocyanurate insulation directly beneath the OSB decking; the sheathing gets hot during the day, but the OSB above the foam insulation is the driest sheathing of all. Remember: Hot means dry.

Ductwork in unconditioned attic assemblies is not ideal. It's best to place all ductwork in conditioned spaces.

OSB has become the universal sheathing material, by economic and environmental necessity. But we still know too little about the moisture performance of this material, such as under what conditions it will begin to fail. In my laboratory, we have seen the material swell by 50 percent or more under extreme conditions. Will it begin to show signs of sagging between trusses, or will workers be putting their feet through it at the time of reroofing? I don't know, but the absence of signs of product failure in the field — at least to my drive-by observations — is reassuring. Nevertheless, I look forward to the day when the marketplace provides a product with more clearly established performance characteristics. I'll be a strong supporter.

Shingles. I'm reviewing the condition of the shingles installed on our research laboratory in 1989; after 18 years, signs of aging are appearing. We hope to conduct laboratory tests to pin down and better quantify the shingle performance and the factors that influence it. The aging we see shows some temperature effect: The white shingles are in better shape than the dark, and a few of the most aged-looking shingles are found on the hottest bay, the one with foam directly on the underside of the sheathing. Without the numbers to go by, we must rely on observation, and our observations suggest that performance depends on other factors besides the presence or absence of ventilation and whether the assembly is truss-framed or cathedral ceiling.

Of course, natural weathering tests that began 18 years ago say little about shingles that are made today. I sense that the shingle industry is currently producing dimension shingles that seem to lie quite flat, resist wind uplift, and hang on to their UV-protecting granules. I don't know how to reroof over dimension shingles, and it does seem unfriendly to the landfill to have that much more mass in the shingle. Nevertheless, my drive-by observations show a lot of good-performing shingles going on roofs over the last couple of decades, and that is very reassuring.

Roof vents. Many years ago, we measured the "net free area" of about a dozen ridge-vent materials. (We used an apparatus that measures the pressure drop across a vent device with great accuracy.) We found that ridge vents with large openings (minimum opening dimension around 1/4 inch) had an equivalent net free area very close to their rated capacity. Vent devices with small openings — or with filter fabrics, or scrims — performed much worse, as much as 75 percent less than their rated area. (If you want to know how restrictive a vent device is, use your imagination — if it looks like air would have a hard time moving through, it probably does.)

This discrepancy would be a big deal, I suppose, for someone who felt that vent regulations were critical to attic performance. I don't, so for me, having vent devices with less airflow than advertised is not a cause for concern.

You — and your building code inspectors — may be unaware that the 2006 version of the IRC for one- and two-family dwellings permits attic construction with no ventilation of the attic cavity. This new provision, R806.4, is largely due to the efforts of Joseph Lstiburek, Armin Rudd, and their colleagues. In brief, unvented conditioned attic assemblies are permitted when an air-impermeable insulation such as rigid foam is applied in direct contact to the underside/interior of the structural roof deck, with sufficient thickness — given the climate — to prevent condensation on the underside (see "Insulating Unvented Attics With Spray Foam," 3/07).

This new provision is a direct challenge to the rule of thumb that has been in place for 50 years, which says that you have to vent a steep-roof attic so the ratio of net free vent area to the projected roof area is 1-to-300 (or 1-to-150 when using "cross ventilation" rather than soffit and ridge vents). This ratio arose from observations of frost on protruding nail points in Wisconsin homes by researchers at the Forest Products Laboratory in 1937, and frost on aluminum plates in research "doghouses" at the University of Minnesota in 1938, under "outdoor" conditions of -13°F.

The Federal Housing Authority turned these findings into the famous 1-300 ratio in 1942, to be applied as a minimum building requirement for the small homes in its financing program. The requirements were picked up by model codes and others following World War II, and the rest, as they say, is history. Shingle manufacturers did not begin piggybacking their warranties on venting regulations until reports of shingle problems began piling up following the change in asphalt sources in the early 1980s.

Every designer and builder should be able to produce good attic and roof assemblies, both with and without ventilation — or anything in between — with just part of a conventional ventilation system. For example, from our studies, roof assemblies that have holes but not necessarily straight airflow paths (one gable end vent, or soffit-only) should also be candidates for good performance. And although unvented roof assemblies can perform well, there are still good reasons to vent: The truss-framed, steep-roof attic with an insulated ceiling has been the workhorse of single-family construction, and ventilation works well with this construction, at least in the northern United States.

In some cases, there are also good reasons not to vent: in wildfire areas, in complex cathedral ceiling assemblies, in existing and historic buildings that have never had ventilation, in shed roofs beneath clerestory windows, with foam insulation (foam and ventilation do not go together — think fire), and in complex roof assemblies that combine steep and low-slope construction. I've also heard persuasive arguments against venting in hurricane-prone regions, but I'm not an expert in that area. In short, since critical performance doesn't hinge on ventilation, then either vent, no-vent, or an in-between "kinda"-vent can be taken as the starting point. Whether the choice works or not depends mostly on other factors.

So you should vent where venting is appropriate and not vent where it is not appropriate. As it turns out, the worst-performing, most mold-ridden attics I have seen were vented — with a flooded crawlspace and a direct path for air movement from the crawlspace to the attic. You can mess up a vented attic by allowing such airflow. You can mess up an unvented attic as well, usually by not providing vapor protection appropriate to the climate and indoor moisture levels. Tight ceilings would be a great first step toward moisture control, summer and winter.

The father of a colleague of mine says that when the word "ventilation" comes out, people stop using their heads. Vented assemblies often perform well, but not always. Sometimes roofs appear to be vented but actually aren't. Still, we can take comfort in the observation, based on years of experience, that our attic assemblies are pretty darn good, and — in my opinion — they're getting better. We need to constantly be on the lookout for new conditions and new problems, as they crop up.

Those of you working in the trenches should continue to build in a way that complies with code and that you know works for your climate. For more information about ice damming, summer cooling load, shingle service life, and moisture issues, visit www.fpl.fs.fed.us/documnts/pdf1999/tenwo99a.pdf (TenWolde and Rose, "Issues Related to Venting of Attics and Cathedral Ceilings"). For all four of these concerns, ventilation makes a contribution that is generally more positive than negative, but it hardly ever makes the difference between success and failure.

For the most part, the focus of codes, researchers, designers, and builders on roof ventilation is misplaced. Instead, the focus should be on building an airtight ceiling, which is far more important than roof ventilation in all climates and all seasons. The major causes of moisture problems in attics and roofs are holes in the ceiling and paths for unwanted airflow from basements and crawlspaces. People should focus first on preventing air and moisture from leaking into the attic. Once this is accomplished, roof ventilation becomes pretty much a nonissue.

William B. Rose is a research architect with the Building Research Council at the University of Illinois at Urbana-Champaign, and the author of Water in Buildings: An Architect's Guide to Moisture and Mold. This article was adapted from The JLC Guide to Moisture Control.

--
Scott's Contracting
scottscontracting@gmail.com
http://stlouisrenewableenergy.blogspot.com
http://greenmeupscotty.wordpress.com

Moisture Content and Wood Movement

Understanding Moisture Content and Wood Movement

by Carl Hagstrom on September 3, 2010

(with Gene Wengert, The Wood Doctor.)

Expected movement can be accurately predicted, which means avoiding potential problems down the road.

In this article, we'll explain the importance of understanding wood movement, how to use a moisture meter to measure the moisture content (MC) of trim, how to decide when a load of trim should be rejected, and how to accurately estimate how much trim will move after it's installed.

Most finish carpenters are aware that seasonal changes in humidity cause trim and flooring to shrink in the winter and expand in the summer. But few realize that the expected movement can be accurately predicted and potential problems avoided. It's our premise that with a moisture meter and an understanding of wood movement, most wood movement problems can be avoided. Plus, with this data, finish carpenters can accurately predict how trim and flooring will behave after it's installed.

Wood Movement — You Can't Stop It

Wood is hygroscopic, which means its MC will fluctuate based on the relative humidity (RH) of the surrounding air. As humidity increases, the MC increases, and the wood expands, and as the humidity decreases, MC decreases, and the wood shrinks. This relationship is referred to as Equilibrium Moisture Content (EMC), and can be accurately predicted.

Understanding Equilibrium Moisture Content

The moisture content of wood is tied directly to the relative humidity of the surrounding air. The higher the relative humidity, the higher the MC of the wood. Period. If you're installing wood that's recently been transported, or installed on a job, it might take a little while for the material to reach its equilibrium moisture content (EMC) with the air—in other words, for the wood to accommodate to the humidity level for the climate around the wood: the wood may take on more moisture or it may dry out. For example, if wood at 10% MC is exposed to 25% RH, the wood will dry to 5% MC (and shrink as it dries).

The EMC helps us understand the response wood will have to relative humidity, whether it will shrink or expand. For woodworkers and carpenters, the EMC is more helpful than RH. The simplified chart to the right shows the EMC values of wood when stored at the humidity and temperatures indicated.

Complete EMC levels for wood stored in unheated structures in your area of the country can be found HERE.

How Wood Moves

If the MC of the wood you install is too high, excessive shrinkage may occur, along with the risk of problems of unacceptable gaps and cracks in the wood itself. When the MC is too low, the wood may expand, and may buckle, bow, and distort surrounding material.

There are six key areas finish carpenters should be aware of when it comes to wood movement.

1. Width of material

The wider the board, the more movement will occur (the term "board" technically refers to wood 1 1/2 in. thick or less, but for this article its use will refer to wood typically used by finish carpenters). It's a direct proportion: an 8-in. board will move twice as much as a 4-in. board, and a 12-in. board will move 3 times the amount as a 4-in. board. And it's important to keep in mind that a glued-up panel behaves basically as one wide piece of lumber.

2. Grain orientation matters

Boards are characterized as being either "flat sawn" or "quarter sawn." Quarter sawn lumber (also referred to as "rift sawn" or "vertical grain") shrinks and expands roughly half as much as flat sawn. Most over-the-counter finish material is flat sawn, and you should assume flat sawn values unless you're sure your material is quarter sawn. Quarter sawn lumber has annular rings that are oriented between 45 and 90 degrees to the board's face. Flat sawn grain orientation falls between 0 and 45 degrees to the board's face.

Wood Grain (Note: Click any image to enlarge. Hit "back" button to return to article")

3. Moisture content of the wood at delivery

The only way to accurately predict wood movement is to know the MC of the material when you receive it. Moisture content is measured using a moisture meter. Failure to check your delivered material means you have no chance of anticipating movement problems. Furthermore, material that measures outside of the acceptable MC level should be rejected.

4. Humidity inside and outside the structure

Homes in most of the U.S. that lack humidity control typically experience interior levels of humidity from 25% RH to 65% RH. This range of humidity will cause a 6% change in the MC of the wood. This change in MC will cause a 12-in. wide maple board to change 1/4 in.

When material is installed that was delivered at an unacceptable MC, or the humidity range in the structure exceeds typical values, the amount of wood movement increases—and can cause problems even in well-designed trim details. It's worth noting that panel material (plywood, MDF, composite materials) move at about 1/10th the rate of solid wood.

In most of North America, exterior humidity levels range from 60% RH to 70% RH in summer and winter, but are lower in the Southwest, and higher near large bodies of water. If the material is delivered at 6 to 8% MC, it can experience more than a 2% change in size as it adjusts to the EMC.

5. Species affects the amount of movement

Wood movement depends in part on the species. A 12-in. wide western red cedar board will fluctuate 1/8 in. while the same size maple board will fluctuate 1/4 in. The formula for calculating wood movement is complex and extremely accurate, but tedious.

One simple rule of thumb serves as an approximate guide to predicting wood movement: "Most species of flat grain material will change size 1% for every 4% change in MC." Applying this formula to a situation where the seasonal EMC ranges from 6% to 10%, a 12-in. wide board will change dimension 1/8 in.

I've put together a rough chart (see below, click to enlarge) that offers approximate movement values for various widths and commonly used species of wood. These values are based on flat sawn lumber, and offer a general idea of anticipated annual in-service movement. The movement values for quarter sawn lumber are approximately 1/2 the flat sawn values.

If you want to know exactly how much the material you're using is going to shrink or expand, use this online shrinkage calculator. Simply enter the high and low MC values and the width and species of the board.

6. Applied finish does not stop movement

While it's true a high quality finish will slow the rate of moisture exchange, it will not stop it. Material finished on all surfaces will expand or contract at a slower rate than raw wood, but make no mistake—finished wood will eventually acclimate to EMC levels.

Events That Increase Movement Risks

There are many events that can contribute to excessive wood movement issues. Nearly all of them can be prevented before they cause a problem if—and only if—you measure the MC of the wood as soon as it's delivered, and avoid using wood that is too wet or too dry for the expected in-use EMC. The moment the wood is delivered, it begins to acclimate to the surrounding environment. At the very least, it's important that you document the delivered MC, just in case wood movement becomes an issue. But responsible carpentry can't be accomplished without reading the delivered moisture content of the wood and planning for wood movement during and after acclimation.

Excessive MC in delivered material

Optimum MC for interior millwork is 6-8%. In the real world, your material may arrive around 9-10%. For installations in unheated areas, the preferred readings are in the 12-14% range, assuming an area is protected from the weather. In most cases, you can deal with material that's a couple of points high, but keep in mind that the wider the stock, the greater the movement. Ideally, the moisture content of wood should not change more than 2% when put into use.

Think through your trim details and consider how they will react when the wider assemblies shrink. With wide glued-up material, slightly higher MC levels may not be acceptable. If you'll be installing wide material, it's a good idea to be upfront with your supplier and let them know that the material's MC must be within the range you specify. As a last resort, you may choose to dry the wood in your shop if the shop's EMC is low, and have any shrinkage problems show up before the wood is installed.

Delivered material that's too dry

This is seldom an issue for interior trim, but can be a real issue for exterior trim. Material delivered at 6% MC, and installed outside, will acclimate at 12% in the more humid months, resulting in a 6 point MC change. This swelling of the material can cause significant problems in situations where installation creates accumulated movement (more on this below).

Long-term storage of trim material

If you plan on storing trim material for any length of time in an unheated area, keep in mind that, in most parts of the US, the material will acclimate to roughly 11-12% MC. (See the humidity moisture content chart at the beginning of this article.)

If MC is too high, lower readings can be achieved by moving the material into a heated area. The amount will depend on the temperature and humidity of the storage area. The change in MC won't happen immediately, and the material in the center of a pile will change at a slower rate than the material at the edges. Spacing the material so all surfaces are exposed to the air helps, as does good air circulation throughout the pile. You'll need to take sample readings with your moisture meter to determine when the material reaches your intended MC.

Higher temperatures result in a more rapid change in MC when the humidity remains constant (roughly speaking, moisture moves twice as quickly for every increase in temperature of 20 degrees). And despite what you may think, moisture gain or loss does not stop when temperatures fall below freezing. The moisture in wood is chemically bound in the walls of the wood cells and cannot freeze.

Typical on-site humidity

At certain points during construction, such as when pouring concrete, plastering or drywalling, tremendous amounts of moisture are often added to the air, causing humidity spikes as high as 80-85% RH. If you are storing finish material on-site during these periods, be sure to keep them wrapped in a vapor impermeable material (like plastic) with as few gaps as possible. Wood stored in this manner will not pick up any appreciable moisture.

Interior trim should not be installed until the temporary construction humidity has subsided. Use an accurate digital hygrometer to measure RH (under $40). Generally speaking, interior trim should not be installed when the humidity is above 60%, or the material may climb above acceptable MC levels.

Humidity in un-heated areas fluctuates about 10%; therefore dry material (6% to 8% MC) installed in un-heated areas will swell significantly. It's important that the MC of exterior trim be within 2-3 points of the EMC values for the area before it is installed.

In-service low humidity issues

In heating climates, older, drafty homes may see humidity drop, measuring 20% RH in the winter. The EMC in this environment will vary nearly 8% wintertime to summertime. Homes with wood stoves and no humidity control can see EMC swings of up to 11%. In extreme environments, consider using cabinet grade plywood for wide panel application instead of solid wood.

In-service high humidity issues

Typically, high humidity (constant levels above 60%) is not an issue. But if you find yourself working on a project that includes a room with a spa, heated pool, or damp crawl space, proceed with serious caution—85% RH means an 18% EMC. A 12-in. wide piece of birch installed at 8% MC in such a room will swell in width over 3/8 in. Letting your material acclimate to the high MC levels before installing is one approach, but keep in mind that if there is ever a period where the pool is drained for a significant time, and the humidity drops to typical levels, the trim material will experience severe shrinkage. A carefully-worded disclaimer regarding wood movement would seem to be in order.

Understanding Accumulated Wood Movement

Glued-up solid wood panels behave as though they were one wide board—a 24-in. wide panel will shrink and swell four times as much as a 6-in. board. But what about a series of boards installed side by side (T&G flooring, for example)? While it's true that each board can move independently, accumulated movement can cause significant problems, typically when the newly installed material gains moisture. (See photo, right)

If the material in non-glued assemblies (flooring, for example) is installed "tight", and there's no gap to absorb expansion as the material gains moisture, the increase in width of each floor board becomes cumulative, and causes the entire floor to "grow" buy the sum of each piece's individual movement. In cases of excessive shrinkage, unacceptable gaps can result between each floorboard.

For example, random width oak flooring is delivered at 8% MC. The width of the room is 12 feet, and the floor acclimates to a high level of 11% MC, the cumulative movement is about 1 3/8 in. In the real world, a lot of this expansion is "lost" as the fit tightens up, but in some cases the wood fibers compress, and fiber compression can cause grain ridges. By using a moisture meter, and predicting the movement, you can decide whether you should install the material "tight" or "loose" to absorb what you know will be an increase in material width.


Moisture content on exterior trim can range from 12% to 16% depending on the region, time of year, and location of the material. (Click images to enlarge)

Common Movement Issues

Paneled Passage Doors

Experienced door hangers know that a paneled passage door with a tight reveal will shrink in the winter and possibly stick in the summer. (Remember, if you live in California, the winters may be more humid than the summers!). But basing your door gap on the time of year you hang the door can be a mistake if you don't know the MC of the door.

The seasonal width changes of a door are controlled by the MC change in the door's stiles.

. . . . . . . . . .

If that fir door you're getting ready to hang in the winter has been stored for six months in an unheated building, the moisture of the 5-in. stiles may easily measure 12-13% MC. After that door is hung, the MC of those stiles will drop to 6%, and the door can easily shrink 3/16 in. Knowing the MC at the time of installation provides the needed guidance.

And keep in mind that the door panels in this example will shrink significantly after installation. This won't affect the fit of the door, but if the door finish is applied at the MC noted, there will likely be unfinished wood exposed as the door panels shrink to their in-service width. (See photo, left) This is particularly noticeable when a light wood is stained dark.

By measuring the MC of the door stiles, you can base your door gap on established movement values, not guesswork, and avoid callbacks when the fit becomes a problem.

Doors with horizontal battens

Unless you're setup to build these doors properly, avoid them. The typical horizontal batten door is built using T&G material for the door face, and then battens are fastened to the back of the door to hold things in place. As the seasonal MC of the T&G material rises and falls, the boards expand and contract, but the battens—with their grain running in the opposite direction—resist that movement, forcing the door to cup inward or outward depending on the direction of the movement.

The detail below is one method used for cabinet batten doors that successfully allows for seasonal wood movement.

Captive panels

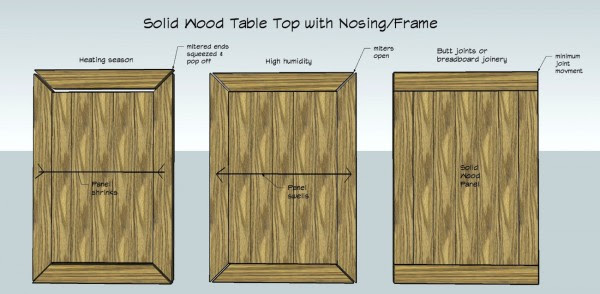

Resist the temptation to "picture frame" a solid wood panel—the way some woodworkers new to the craft miter a nosing or a frame around a tabletop. The miter joint will always fail when the panel expands and contracts. Instead, use a breadboard nosing design so that the wide panel can shrink or swell without destroying the surrounding joinery. (See below)

Inside corner trim

When installing trim that covers an inside corner, fasten the trim through the corner and into the substrate so the adjoining finish material can move independently as its MC changes. A typical example is base shoe molding. The best practice is to nail base shoe to the plate, with a long nail that doesn't penetrate the baseboard or the flooring. But that's not practical on most jobs.

The second choice is to fasten the baseshoe to the baseboard. Yes, the baseboard will lift off the floor in the heating season, but rarely more than 1/16 in. A wide floor, on the other hand, moves more than a 6-in. piece of baseboard; if you nail the base shoe to the floor, the base shoe may separate significantly from the baseboard.

. . . . . . . . . .

Common Myths

Wood is stable at below freezing temperatures.

The moisture in wood is chemically bound in the walls of the wood cells and cannot freeze, and expansion and contraction continues at below freezing temperatures. Wood does acclimate more slowly at lower temperatures.

Wood will expand on warmer days and contract on colder days.

For all practical purposes, thermal expansion and contraction of wood is not an issue. That said, warmer temperatures speed the exchange of moisture within the wood. Moisture exchange will happen more rapidly at warmer temperatures, but there is no thermal movement of wood worth measuring.

It doesn't matter if lumber is kiln-dried.

Kiln-dried hardwood lumber typically leaves the kiln near 6% MC (softwoods at 10-12%). But all kiln-dried material will acclimate to the surrounding EMC levels. The significant advantages of kiln-dried material is that it is typically heated to at least 130 degrees in the kiln, which will stop any insect activity, and also "set" the sap in resinous softwoods (sap in resinous air dried material can bleed from the board after it's installed, especially when interior temperatures rise in the summer).

They don't make wood like they used to.

It's true that most of the old growth timber is gone, but properly dried vertical grain material has highly desirable movement characteristics. If you're seeking material that will move the least, choose one of the more stable species, and specify vertical grain (and be sure to check your wallet before ordering!).

But most importantly, owning and using a moisture meter and knowing the in-use EMCs is an inexpensive way for carpenters to predict and avoid wood movement problems that could require costly repairs.

———
