Showing posts with label Safe Room. Show all posts
Showing posts with label Safe Room. Show all posts

Tuesday

Emergency Backup - OffGrid Power Supply - Battery Bank

The 1st Alternative Backup Power System That Keeps You Safe In Your Home or Business

Alternative Backup Power System  http://bit.ly/SolarGenBackup
Alternative Backup Power System That Keeps You Safe In Your Home





Thank You for stopping by the Green Blog. If additional information in needed or you have a question let me know by posting a question or comment. Together we can make a difference and create a future that will benefit everyone.

Monday

Brick Building Earthquake Warning

Should the people of St.Louis be concerned? 2017 Solar Eclipse follows the line of the North American Rift and since the New Madrid Fault line is located in this general area. Yes I feel it does cause room to be aware of the situation at the minimum.

Solar Eclipse and the North American Rift will it affect the New Madrid Fault?



I hope, have prayed, and will do a little more praying in the days to come that the Madrid Fault does not move from its current location. The Brick and Masonry buildings around town that were built during the World Fair held in St.Louis years and years ago were not constructed with steel reinforment when the brick buildings were built.

StLouis Worlds Fair Brick Building History Lesson: There were many clues for determining the age of the building. When St Louis hosted the Worlds Fair.  The city planners realized that housing was going to be needed for everyone and started building many of the brick homes that are still being utilized all over the city today....Either way when you have the type of brick as the ones in this building you have a building using bricks that were made in the Late 1800s or early 1900s.

This means that any lateral or sideways movement could allow for the collapse of many of the brick buildings around town. The Buildings were not constructed using modern day building practices and did not have metal support or bracing in the mortar that holds the bricks in place.


Masonry / Brick Buildings without steel reinforcement are made for compression strengthWhen steel reinforcement is added it will support lateral or sideways strength see image Masonry Constructed Safe Room Design.

Masory Construction Lateral or Sideways Support is provided by the Steel Reinforcment
Masory Lateral or Sideways Support is provided by the Steel Reinforcment
Here is what could happen to the Buildings in StLouis in an Earth Quake:
Brick Wall Collapse Images and Repair St Louis Masonry Buildings
Brick Wall Collapse Images and Repair St Louis Masonry Buildings
  1. When the ground moves the buildings will also move: up, down, sideways, back and fourth.
  2. The movement will cause the mortar or glue that holds the old bricks together to come loose.
  3. This could cause the walls of a masonry brick building to come tumbling down as in the image above.
  4. For your own safety: Vacate or Leave the Premise or Move away from exterior walls and vacate the top floor of the building if an Earthquake does happen in St.Louis.
St.Louis Brick Building collapse images used in infographic were copied from ONSL.org http://onsl.org/



Thank You for stopping by the Green Blog. If additional information in needed or you have a question let me know by posting a question, comment, contact form, or by email. Together we can make a difference and create a future that will benefit everyone.

Saturday

StL Most Requested Safe Room Features

Safe Room Features

What Features are in your Safe Room?

Has been brought up in my dealing with clients while talking about a safe room for personal safety from extreme events.

Here's some of the things that I found most commonly mentioned:
Toilet, Water, Fridge, Kitchen, Built-ins, First Aid Station, Phone, CB, Internet, Tools, Weapons, Books, Computer, Radio, Power Supply, Food Pantry, Lights...
Luckily with today's advancements in the Building Industry you can have all these in your Safe Room.  I'll share a few of my thoughts and build notes on how to incorporate any and all of the above features mentioned above starting with my favorites the Solar Energy Power Supply and Water.

Water is the Must Have in Every Safe Room


                 Most any plumber can route a line into your safe room but what if the local water utilities supply can't meet the needs and you have NO Water better have a backup plan of:  Water Collection, Water Storage, Water Re-Use-all common elements for supplying clean water to a safe room.

Solar Energy Power Supply with Battery Bank for Emergency Scenarios

Safe Room Features-NewPower Emergency Battery Bank System
NewPower Emergency Battery Bank System


                   Since we are in the Safe Room from some extreme event and there may or maynot be a roof on your home.  The Stand Alone Solar Panels mounted in your backyard will prove a wise investment for supplying the power needed for functional living.


Safe Room Ground Mounted Stand Alone Solar Array System
Stand Alone Solar Array not attached to Home


                    If there is still a roof on your home and the Solar Panels mounted there will just be adding to the needed power of the Safe Room.  Keeping the batteries at Full operating power!


                    Another option is a generator that is tied into your battery that also works in conjunction with your solar panels such as this NewPower System that incorporates a Generac generators-


  • 8000 Watt stand-by generator
  • Runs on LP or NG
  • Designed for quiet operation
  • Recharges batteries in Power Center when required
  • Automatic self-test weekly


All of the above functions are handled seemlessly at the Power Center

Safe Room NewPower System Power Center Control Point
Safe Room NewPower System Power Center Control Point



Here is additional information in the form of a google document on the NewPower System for Emergency Power Failures


We will be covering Waste Management in the next addition to Safe Room Features.  Part of the Safe Room Blog Posts 1 and 2.

Here's some suggestions via Twitter







Thank You for stopping by-Share and Comment below. If additional information in needed or you have a question let me know. Together we can make a difference. Build a Green StLouis Get Your Green Building Tips and Resources at St Louis Renewable Energy Green Blog

     style="display:inline-block;width:300px;height:250px"
     data-ad-client="ca-pub-7737777276609990"
     data-ad-slot="3857406203">

Friday

Safe Room Design-Weather-SafeHome-Crowd

CAD Designs Adding a Safe Room Design to an existing Basement.

If you have any questions feel free to either use the Contact Form or# on Right.

Complete plans, Design-Build Assistance for adding a Safe Room to your Building contact Scotts Contracting at the Contact Form on the Right or the Web Pageclick here to email and set up a time to discuss your project.


CAD Safe Room Design for an existing Basement-8in CMU, Steel Door, 6in Reinforced Concrete Ceiling
CAD Safe Room Design for an existing Basement-8in CMU, Steel Door, 6in Reinforced Concrete Ceiling
When Building a CMU structure it is highly advisable to add Steel Reinforcement- In the case of building for Tornado or Hurricane Save Rooms substitute No.4 Vertical Rebar for No.5 size rebar.
how a CMU Block Wall is Reinforced.  Simple CAD Drawing showing the suggested Metal Reinforcement.Scotts Contracting
How a CMU Block Wall is Reinforced.  Simple CAD Drawing showing the suggested Metal Reinforcement.
Building the Concrete Ceiling-Structural Reinforcement Suggestions.
Build Notes-Hurricane and Tornado-Safe Room Build Suggestions #5 Rebar at 12in MATT-Dowel Into Existing Concrete Wall, Attach MATT to Existing #5 Verticals in CMU Wall-, {For Added Reinforcement for this area ADD 2ft "L" Bar and Wire Tie to MATT and Verts, 4in Min Concrete Ceiling Suggested 6in Thick Ceiling, All CMU Voids filled with Mortar {Be Sure to ADD the "L" Bar before the Voids are filled with Mortar.
Concrete Ceiling-Structural Reinforcement Suggestions. Build Notes-Hurricane and Tornado-Safe Room Build Suggestions-Scotts Contracting
Concrete Ceiling-Structural Reinforcement Suggestions.
Build Notes-Hurricane and Tornado-Safe Room Build Suggestions
Added April 7, 2014
  • I'll be honest there has always been something that bothered me about the Tornado Safe Room design that FEMA suggested. I was never worried about the Structural Ability of the Safe Room Design to not withstand a Severe Storm-it is the fact of being trapped in a Safe Room- like Jodi Foster in Panic Room.  Maybe I've watched too much tv?  I'd rather be safe than sorry.
  • The fact that 2 exits are not available-as is required of almost any home/room design was the Red Flag going off in my mind and when I finally figured it out I made some notes and a quick sketch.  When I got home this evening I sat down and made a couple of quick CAD drawings of the idea to help you get a better idea of what I'm talking about.

  • Maybe its just me, but; I'd hate to survive a storm only to die of starvation because I couldn't get out of a safe room in a basement of a home.
  • I've seen too many horror stories (Hurricane Katrina in New Orleans) of phones not working, emergency personnel too busy to respond to all the requests...scotty

  • There is also the added benefit in the building of the safe room with an exterior point to bring the building materials into the safe room.  This will help keep the labor costs lower as it will speed up the job site production by reducing the man hours.
I now feel that I have a Safe Room Design Build Plan that I would build in my own home and am comfortable sharing and discussing the project in detail.

Feel free to email or call me for any design build assistance in building a Tornado shelter in your Home.
CAD design by Scotty-Safe Room Emergency Exterior Exit
Safe Room Emergency Exterior Exit


CAD Design by Scotty-Safe Room CMU Basement Steel Door Location
Safe Room CMU Basement Steel Door Location

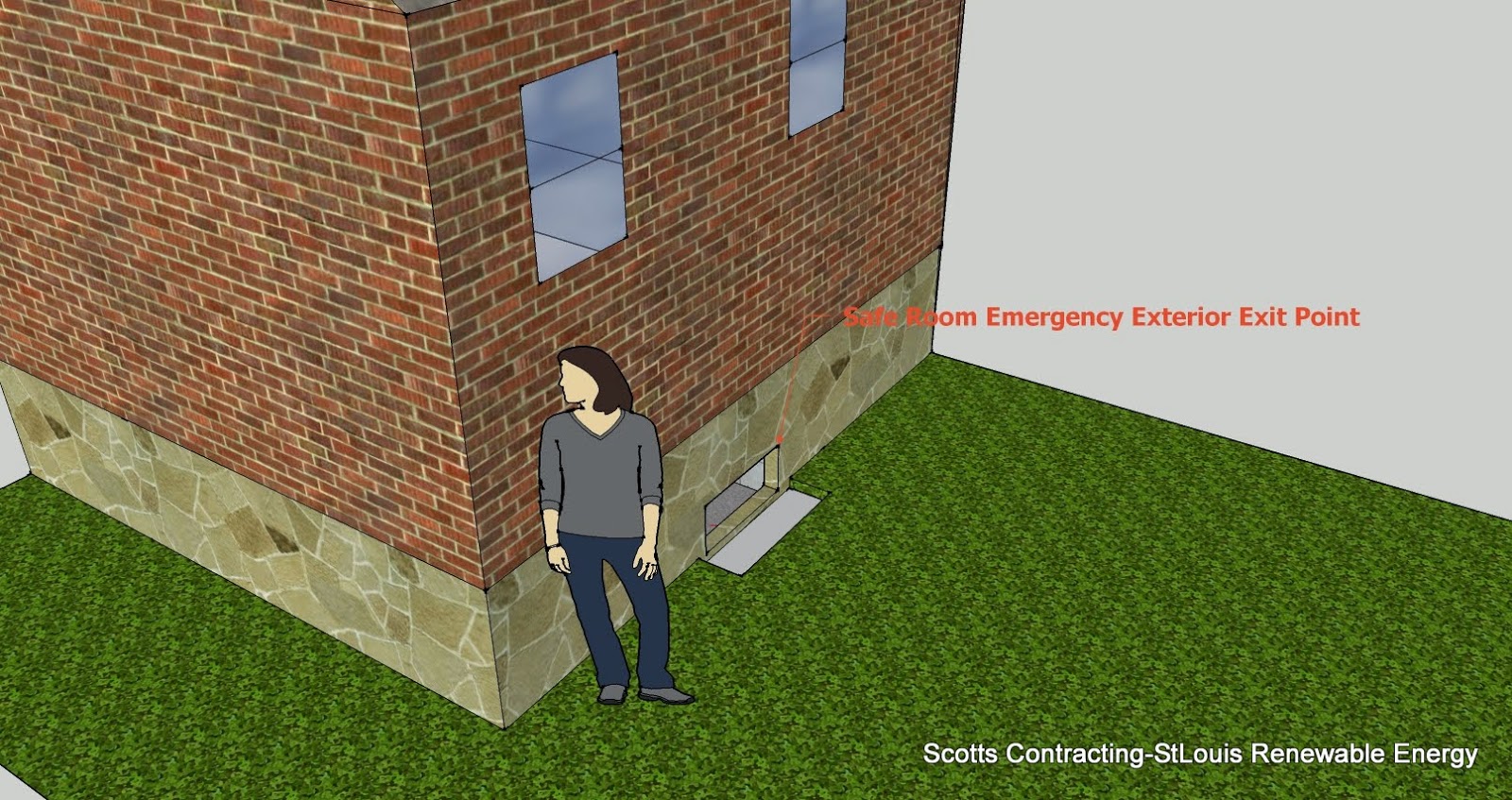

CAD Design by Scotty-Safe Room Exterior Exit Point
Safe Room Exterior Exit Point








Taking Shelter From the Storm | FEMA.gov

Taking Shelter From the Storm


The safe room construction plans and specifications from FEMA P-320, Taking Shelter From the Storm, are available in DWG format.

To view and download those files

and other CAD Storm Shelter Drawings

click here.

LIMIT OF LIABILITY:  THE DESIGNS IN THIS BOOKLET ARE BASED ON EXTENSIVE RESEARCH OF THE CAUSES AND EFFECTS OF WINDSTORM DAMAGE TO BUILDINGS. SAFE ROOMS DESIGNED AND BUILT TO THESE DESIGNS SHOULD PROVIDE A HIGH DEGREE OF OCCUPANT PROTECTION DURING EXTREME WINDSTORMS (TORNADOES AND HURRICANES). ANY SUBSTITUTION OF EITHER MATERIALS OR DESIGN CONCEPTS MAY DECREASE THE LEVEL OF OCCUPANT PROTECTION AND/OR INCREASE THE POSSIBILITY OF PERSONAL INJURY DURING AN EXTREME WIND EVENT.

IMPORTANT LEGAL NOTICE


Because it is not possible to predict or test all conditions that may occur during extreme windstorms, or control the quality of construction, among other things, the designer does not warrant the design.
The designer neither manufactures nor sells safe rooms built from this design. The designers have not made and do not make any representation, warranty, or covenant, express or implied, with respect to the design, condition, quality, durability, operation, fitness for use, or suitability of the safe room in any respect whatsoever. Designers shall not be obligated or liable for actual, incidental, consequential, or other damages of or to users of safe rooms or any other person or entity arising out of or in connection with the use, condition, and/or performance of safe rooms from this design or from the maintenance thereof.
- See more at: http://stlouisrenewableenergy.blogspot.com/2013/05/tornado-safe-room-design.html#sthash.FTgJEhTc.dpuf



Thank You for stopping by-Share and Comment below. If additional information in needed or you have a question let me know. Together we can make a difference. Build a Green StLouis Get Your Green Building Tips and Resources at St Louis Renewable Energy Green Blog

Thursday

Tornado Safe Room Design

With the Rash of Tornadoes caused by the Extreme Weather Conditions we have had recently in the US.  I put together a few Tornado-Hurricane Safe Room Designs and Options.

The first Drawing outlines the basic components of the exterior walls and ceiling for building a safe room in an existing basement using CMU-Concrete Masonry Units generally called Concrete Blocks-Steel Door and Frame, Reinforced Poured Concrete Ceiling.


Complete plans, Design-Build Assistance for adding a Safe Room to your Building contact Scotts Contracting at the Contact Form on the Right or the Web Pageclick here to email and set up a time to discuss your project.


CAD Safe Room Design for an existing Basement-8in CMU, Steel Door, 6in Reinforced Concrete Ceiling
CAD Safe Room Design for an existing Basement-8in CMU, Steel Door, 6in Reinforced Concrete Ceiling
When Building a CMU structure it is highly advisable to add Steel Reinforcement- In the case of building for Tornado or Hurricane Save Rooms substitute No.4 Vertical Rebar for No.5 size rebar.
how a CMU Block Wall is Reinforced.  Simple CAD Drawing showing the suggested Metal Reinforcement.Scotts Contracting
How a CMU Block Wall is Reinforced.  Simple CAD Drawing showing the suggested Metal Reinforcement.
Building the Concrete Ceiling-Structural Reinforcement Suggestions.
Build Notes-Hurricane and Tornado-Safe Room Build Suggestions #5 Rebar at 12in MATT-Dowel Into Existing Concrete Wall, Attach MATT to Existing #5 Verticals in CMU Wall-, {For Added Reinforcement for this area ADD 2ft "L" Bar and Wire Tie to MATT and Verts, 4in Min Concrete Ceiling Suggested 6in Thick Ceiling, All CMU Voids filled with Mortar {Be Sure to ADD the "L" Bar before the Voids are filled with Mortar.
Concrete Ceiling-Structural Reinforcement Suggestions. Build Notes-Hurricane and Tornado-Safe Room Build Suggestions-Scotts Contracting
Concrete Ceiling-Structural Reinforcement Suggestions.
Build Notes-Hurricane and Tornado-Safe Room Build Suggestions
Added April 7, 2014
  • I'll be honest there has always been something that bothered me about the Tornado Safe Room design that FEMA suggested. I was never worried about the Structural Ability of the Safe Room Design to not withstand a Severe Storm-it is the fact of being trapped in a Safe Room- like Jodi Foster in Panic Room.  Maybe I've watched too much tv?  I'd rather be safe than sorry.
  • The fact that 2 exits are not available-as is required of almost any home/room design was the Red Flag going off in my mind and when I finally figured it out I made some notes and a quick sketch.  When I got home this evening I sat down and made a couple of quick CAD drawings of the idea to help you get a better idea of what I'm talking about.
Maybe its just me, but; I'd hate to survive a storm only to die of starvation because I couldn't get out of a safe room in a basement of a home.

I've seen too many horror stories (Hurricane Katrina in New Orleans) of phones not working, emergency personnel too busy to respond to all the requests...
  • There is also the added benefit in the building of the safe room with an exterior point to bring the building materials into the safe room.  This will help keep the labor costs lower as it will speed up the job production by reducing the man hours.
I now feel that I have a Safe Room Design Build Plan that I would build in my own home and am comfortable sharing and discussing the project in detail.

Feel free to email or call me for any design build assistance in building a Tornado shelter in your Home.
CAD design by Scotty-Safe Room Emergency Exterior Exit
Safe Room Emergency Exterior Exit

CAD Design by Scotty-Safe Room CMU Basement Steel Door Location
Safe Room CMU Basement Steel Door Location

CAD Design by Scotty-Safe Room Exterior Exit Point
Safe Room Exterior Exit Point






Taking Shelter From the Storm | FEMA.gov

Taking Shelter From the Storm



The safe room construction plans and specifications from FEMA P-320, Taking Shelter From the Storm, are available in DWG format.

To view and download those files

and other CAD Storm Shelter Drawings

click here.

Limit of Liability:  The designs in this booklet are based on extensive research of the causes and effects of windstorm damage to buildings. Safe rooms designed and built to these designs should provide a high degree of occupant protection during extreme windstorms (tornadoes and hurricanes). Any substitution of either materials or design concepts may decrease the level of occupant protection and/or increase the possibility of personal injury during an extreme wind event.

Important Legal Notice


Because it is not possible to predict or test all conditions that may occur during extreme windstorms, or control the quality of construction, among other things, the designer does not warrant the design.
The designer neither manufactures nor sells safe rooms built from this design. The designers have not made and do not make any representation, warranty, or covenant, express or implied, with respect to the design, condition, quality, durability, operation, fitness for use, or suitability of the safe room in any respect whatsoever. Designers shall not be obligated or liable for actual, incidental, consequential, or other damages of or to users of safe rooms or any other person or entity arising out of or in connection with the use, condition, and/or performance of safe rooms from this design or from the maintenance thereof.


Thank you for stopping by St Louis Renewable Energy. Feel free to comment in the section below or contact Scotts Contracting- St Louis Home Improvement Projects and Energy Reducing Needs Get Your Green Building Tips and Resources at St Louis Renewable Energy Green Blog

Connect with Scotts Contracting

FB FB Twitter Google Plus Tumblr LinkedIn Blog Blog Blog Blog Pinterest

Featured Post

Free Seed Giveaway Prizehead Lettuce

Seems like just a few weeks ago I was watching the lettuce sprout. Prize Head Lettuce Plant Date April 9, 2017 August 2, 2017 Video...
